AU620 Intelligent Deepwell Pump Drive VFD PUMP Controller

AU620 Intelligent Deepwell Pump Drive VFD PUMP Controller
Power Input: Single-phase and three-phase AC
Motor Protection: Phase loss, overload, overvoltage, undervoltage
Pump Protection: Water shortage, burst pipe automatic shutdown
Automatic Control: Restart on power/water recovery, PID pressure control
Pump Compatibility: Permanent magnet synchronous and asynchronous motors, all pump brands including Grundfos & Wilo
Operation: One-touch operation, simple and intuitive
Reliability: Intelligent anti-freeze, anti-rust, high-quality components
Inst

Product Details

Product Tags

Product Description

Ausenist high-performance IP54 smart AU620 Water Pump Drive. The AU620 is a single-phase and three-phase variable frequency drive designed to optimize water pump performance across a wide range of water supply system conditions.

The AU620 drive enables pumps to operate more efficiently, safely, and intelligently, reducing energy consumption and extending pump lifetime.

Constructed with high-quality components and materials, the AU620 incorporates the latest microprocessor technology for reliable and precise control.


Ausenist Single Phase 220V Two Wires Output Inverter Frequency Converter VFD for Water Pump


AU620 Pump Inverter – Product Features

  1. Comprehensive Pump Motor Protection
    Protects your pump motor from phase loss, overload, overvoltage, undervoltage, dry running, and other common issues.

  2. Dual Main Pump Operation
    Supports two main pumps running online, alternating at regular intervals for even usage and longer pump life.

  3. Automatic Restart
    Automatically restarts the pump when power or water supply is restored, ensuring smooth and continuous operation.

  4. Intelligent Anti-Freeze and Anti-Rust Protection
    Prevents freezing and corrosion during idle periods, keeping your system safe in cold or harsh environments.

  5. Water Shortage and Burst Pipe Protection
    Detects low water levels or pipe bursts and shuts down the pump automatically to avoid damage.

  6. Universal Motor Compatibility
    Works with both permanent magnet synchronous and asynchronous motors, making it suitable for a wide range of pumps.

  7. One-Touch Operation
    Simple and intuitive control allows easy operation without specialized training.

  8. Energy-Efficient and Reliable
    Optimizes pump performance, reduces energy consumption, and extends the life of your pumps.

  9. Compatible with All Major Pump Brands
    Including Grundfos, Wilo, KSB, Ebara, Lowara, Xylem, and Flygt.



Ausenist Single Phase 220V Two Wires Output Inverter Frequency Converter VFD for Water Pump

  1. Ausenist Single Phase 220V Two Wires Output Inverter Frequency Converter VFD for Water Pump

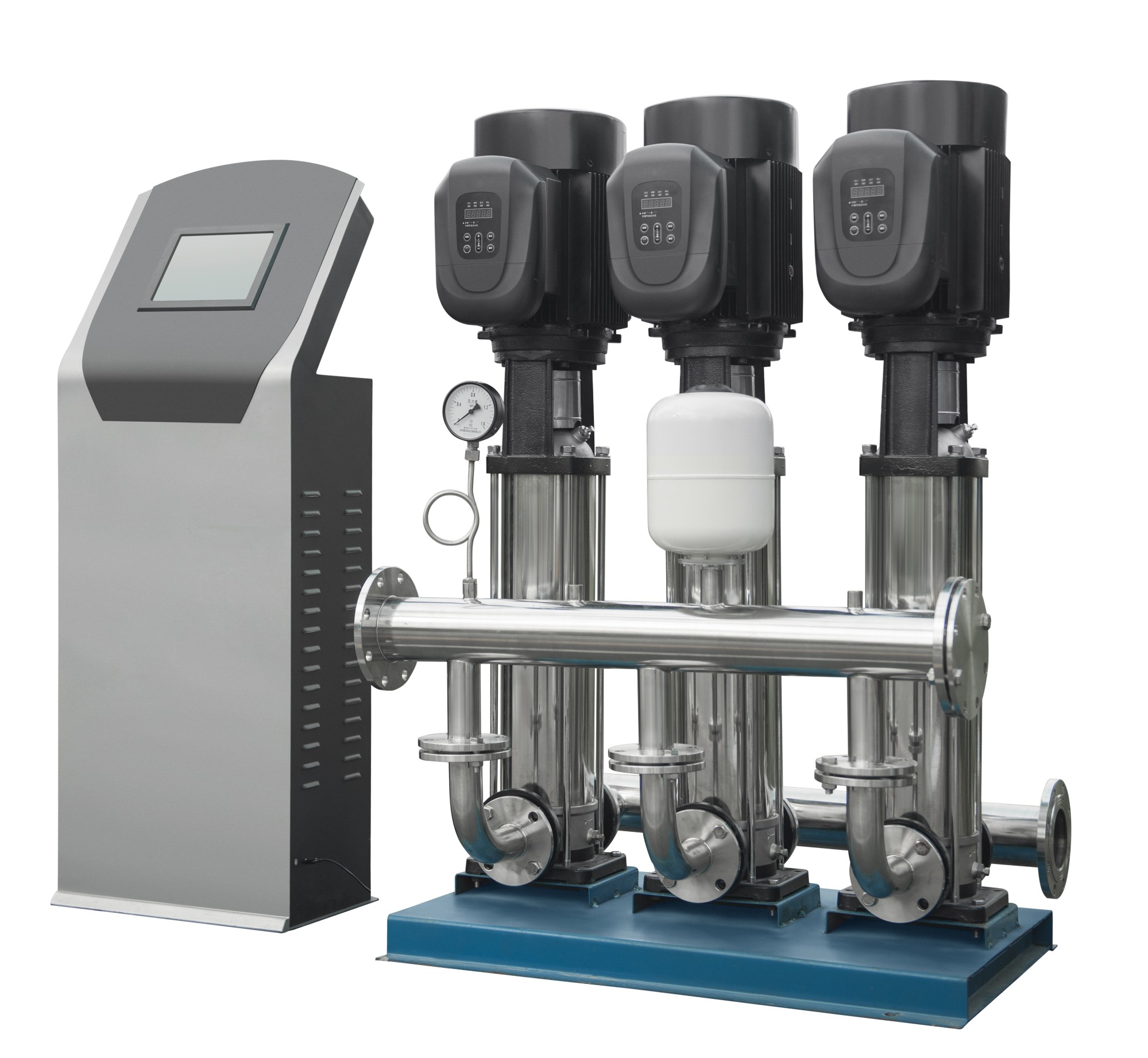

Dual Main Pump & Auxiliary Multi-Pump System

The host unit continuously monitors the pressure in the pipe network and communicates it to the auxiliary pumps. It automatically controls the operation and PID settings of each auxiliary pump based on real-time pressure conditions.

The system monitors the status of all pumps. If the host pump fails, the standby host automatically takes over. If an auxiliary pump fails, it is bypassed, and the next auxiliary pump is started. This ensures seamless automatic switching between main and auxiliary pumps.

Main and auxiliary pumps can operate alternately at scheduled intervals, balancing workload across the system to extend pump life.

This industry-leading setup supports dual main pumps and multiple auxiliary pumps, ensuring reliable operation even if one main pump is offline, while optimizing performance and energy efficiency.




Ausenist Single Phase 220V Two Wires Output Inverter Frequency Converter VFD for Water Pump

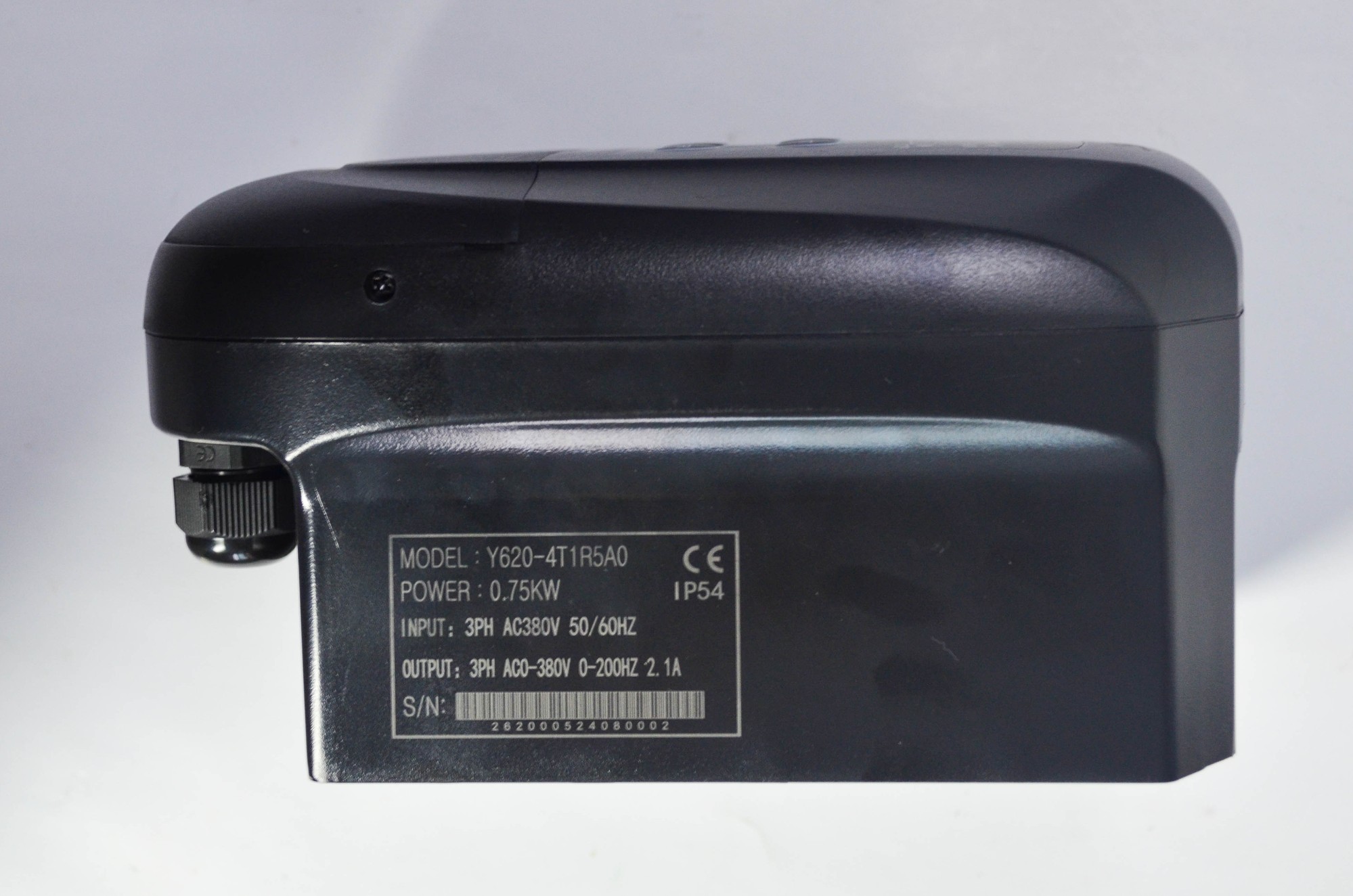

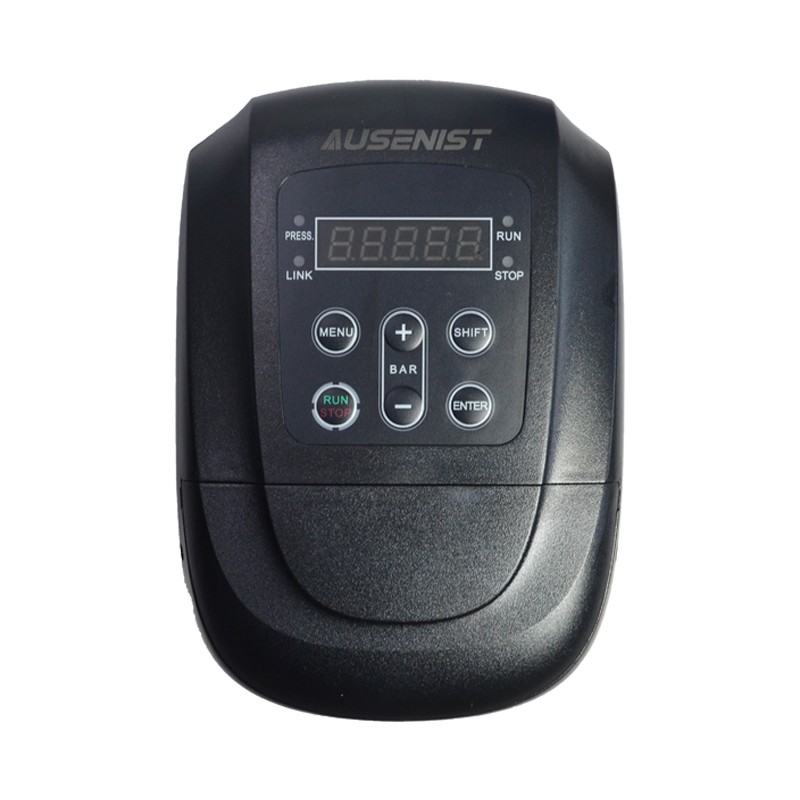

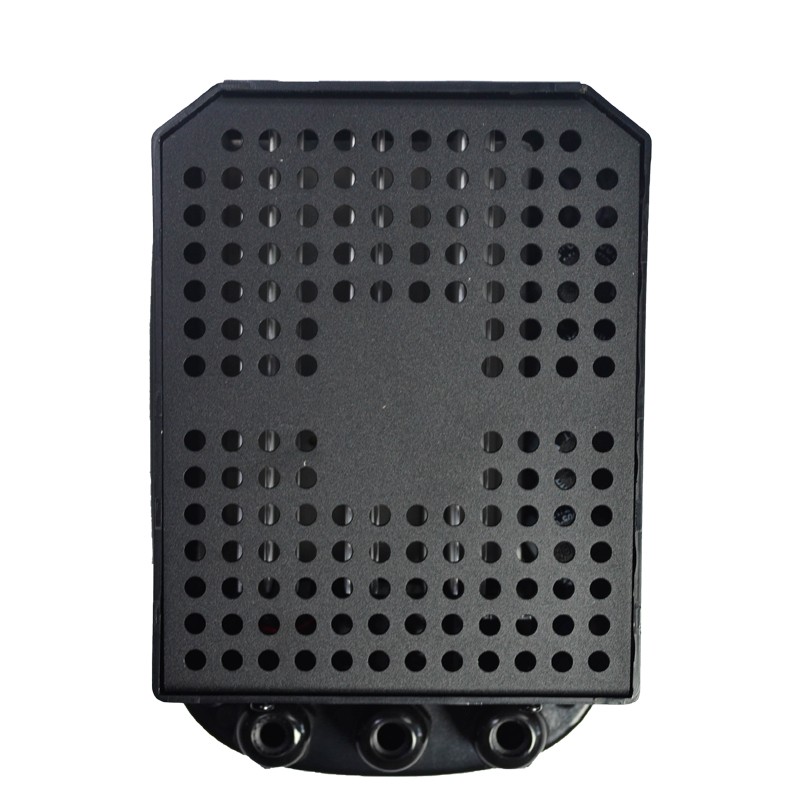

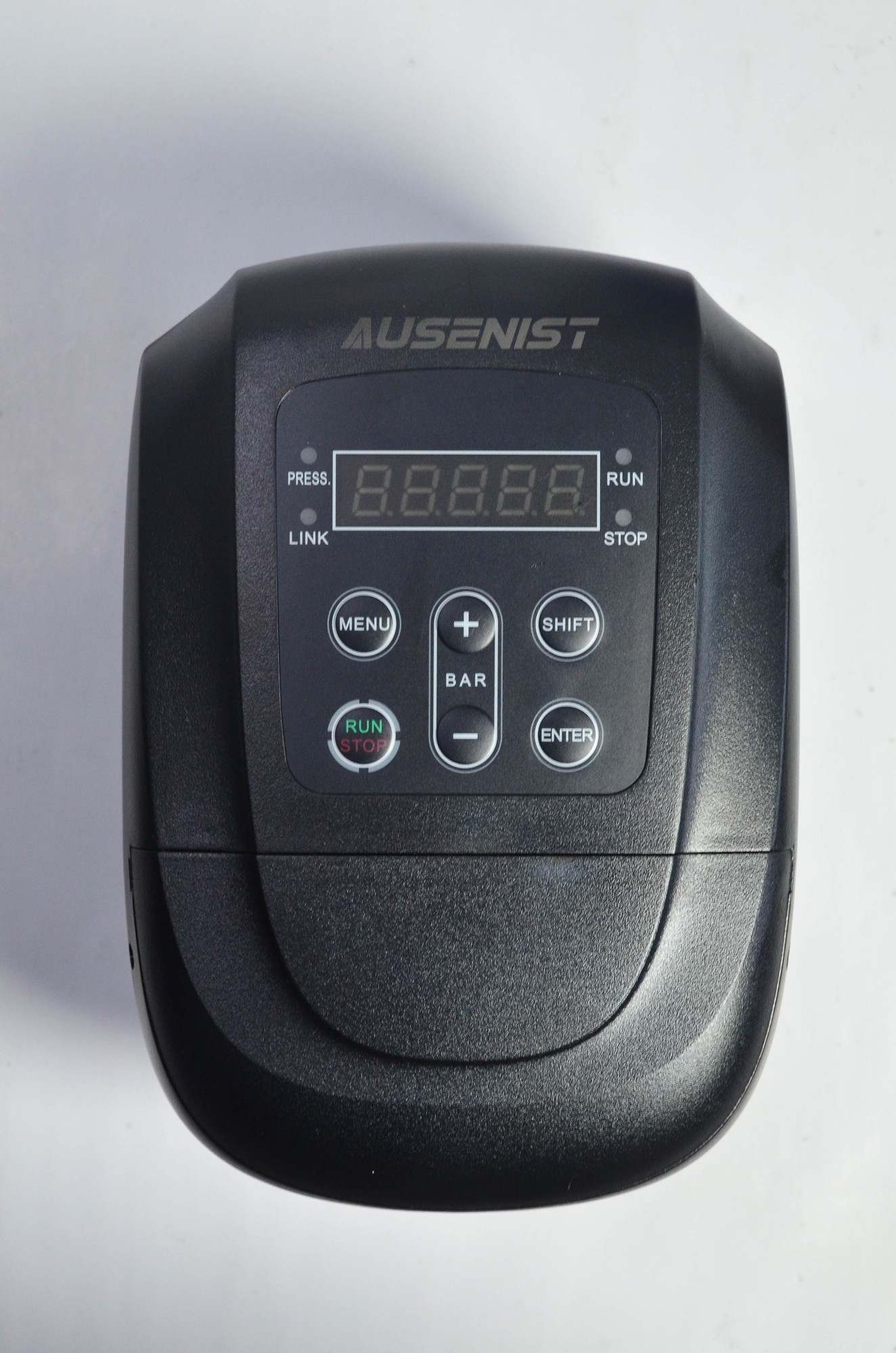

Detailed Photos
Ausenist Single Phase 220V Two Wires Output Inverter Frequency Converter VFD for Water Pump

Product Parameters


Ausenist Single Phase 220V Two Wires Output Inverter Frequency Converter VFD for Water Pump


Suit for :Aira, Alfa Laval, Armstrong, Airedale, Airmat, AMT, AODD, Argus, Atlas Copco, Aurora Pump, Baker Hughes, Barmesa, BJM, Blacoh, Boerger, Busch, Buehler, Calpeda, Caprari, CFS Irrigation, Cornell, Crane Pumps & Systems, CNP, DAE Pumps, Dab Pumps, Dickow Pumpen, Dover Corporation, EBARA, Edur, EIM, ETEC International, Flowserve, Franklin Electric, Flygt, FTI, Gorman-Rupp, Goulds, Grindex, Grundfos, GEA Group, Hayes Pump, Honda Power Equipment, Honeywell, Hydromatic, ITT Goulds, INPATECH, Industrial Flow Solutions, Jee Pumps, John Crane, KSB, Lancaster Pump, Leistritz Pumpen, Lowara, MP Pumps, Miami Pump, Mouvex, Munsch, Metso, Minimax, Nickerson Company, Neptune, Nikkiso, Oberdorfer, Pedrollo, Pentair, Pitbull Industrial, Pure Aqua, Pompetravaini, Ronix, Roth Pump Company, Ruhrpumpen, Sundyne, SPP Pumps, SEEPEX, Schlumberger, Sulzer, Sero, SPX Flow, T-T Pumps, Tsurumi, Timken, Trust Process Solutions, Vaughan, Vogelsang, Viking, Versamatic, Vickers, Weir Group, Wilo, Xylem, Zoeller, Zenit, Zhejiang Taifu, Zhejiang Chenjie

Tags:


Types of Water Pumps (Industrial & International Trade Focus)

Below is a structured list of water pump types, categorized by core working principles, structural designs, conveyed media, and application scenarios. It includes key features, typical use cases, and renowned international brands to support selection and trade-related communications.

I. Classified by Core Working Principle (Most Common)

Pump Type

Working Principle

Key Features

Typical Application Scenarios

International Brand References

Centrifugal Pump

Relies on high-speed impeller rotation to generate centrifugal force, propelling media to the outlet (kinetic energy → pressure energy).

Large flow rate, wide head range (low → high), simple structure, easy maintenance; accounts for over 80% of industrial applications.

Industrial circulating water, water supply/drainage, HVAC, agricultural irrigation, petrochemical transportation.

Grundfos, KSB, Wilo, Xylem

Positive Displacement Pump

Relies on changes in cavity volume to suck and discharge media (e.g., piston, gear, or screw extrusion).

High head, stable flow rate (unaffected by pipeline resistance), suitable for high-viscosity media.

High-pressure cleaning, hydraulic systems, crude oil/asphalt transportation, food processing (no shear requirements).

Bosch Rexroth, Netzsch, Eaton, Lewa

Special Principle Pumps

Non-traditional mechanical transmission (e.g., electromagnetic force, ultrasonic waves, jet negative pressure).

No mechanical wear, low noise, suitable for special media (corrosive, high-purity).

Laboratories, medical equipment, electronic semiconductor cleaning, small-scale pure water transfer.

Olympus, Pfeiffer Vacuum

Subtypes of Positive Displacement Pumps (Industrial-Grade)

  • Gear Pump: Compact structure; suitable for low-viscosity media (lubricating oil, diesel) in automotive and mechanical hydraulic systems.

  • Screw Pump: Single/double screw design; conveys high-viscosity media with particles (sludge, food slurry).

  • Piston/Plunger Pump: High pressure (up to several hundred bar), high precision; used in hydraulic systems, high-pressure cleaning, and oilfield water injection.

  • Diaphragm Pump: Shaft seal-free design, leak-proof; suitable for corrosive media (acids, alkalis) and solid-containing media (chemical industry, sewage treatment).

II. Classified by Structural Design

Structural Type

Key Characteristics

Application Scenarios


Single-Stage Pump

1 impeller; simple structure, low cost; suitable for low head (≤100m) and large flow.

Building water supply/drainage, industrial cooling circulation.


Multi-Stage Pump

Multiple impellers in series; high head (up to 1000m+), stable flow.

High-rise building water supply, mine drainage, long-distance pipeline transportation.


Self-Priming Pump

Equipped with self-priming device; starts without priming, avoids dry running damage.

Outdoor operations, emergency drainage, pond pumping, chemical tank farm transfer.


Pipeline Pump

Tubular pump body; directly installable in pipelines; small size, low noise.

HVAC, floor pressure boosting, industrial pipeline circulation.


Submersible Pump

Integrated motor and pump body; operates submerged in media; no need for machine room, easy installation.

Sewage treatment, deep well water extraction, foundation pit drainage, underwater operations (e.g., offshore platforms).

Grundfos, Wilo, QJ Series (domestic)

III. Classified by Conveyed Media (Core for Industrial Selection)

Media Type

Pump Requirements

Typical Pump Types


Clean Water

Low corrosion resistance; focus on flow rate and head.

Single-stage centrifugal pump, pipeline pump (e.g., Grundfos CR Series).


Sewage/Sludge

Clog-resistant, wear-resistant; impeller with anti-winding (cutting function).

Submersible sewage pump, screw pump, diaphragm pump (e.g., Xylem Flygt Series).


Corrosive Media

Pump body made of stainless steel (304/316L) or PTFE; excellent sealing performance.

Fluoroplastic centrifugal pump, rubber-lined diaphragm pump (for acids, alkalis in chemical industry).

KSB Amarex, Grundfos Magna3

High-Temperature Media

High-temperature resistant materials (superalloys), enhanced mechanical seals; suitable for media above 200℃.

Multi-stage centrifugal high-temperature pump, heat transfer oil pump (e.g., heat transfer oil transportation in petrochemical industry).

Wilo Stratos, KSB Omega

Oil/Fuel

Explosion-proof design, leak-proof; suitable for diesel, gasoline, lubricating oil.

Gear pump, vane pump (e.g., automotive engines, industrial hydraulic systems).

Bosch, Eaton, Caterpillar

Sanitary-Grade Media

Dead-angle-free design, easy to clean; compliant with food/pharmaceutical standards (3A, GMP).

Centrifugal pump, cam rotor pump (for liquid medicine, fruit juice in food and pharmaceutical industries).

Alfa Laval, SPX Flow

IV. Classified by Application Scenarios (Aligned with Industrial Automation & International Trade)

Application Field

Common Pump Types

Key Selection Parameters

Industrial Automation

Pipeline pump, centrifugal pump, gear pump (hydraulic systems).

Flow rate (m³/h), head (m), media temperature (℃), motor power (kW), explosion-proof rating (Ex d IIB T4).

Water Treatment

Submersible sewage pump, centrifugal sewage pump, metering pump (dosing systems).

Anti-clogging capability, sludge concentration, corrosion-resistant materials.

Petrochemical/Chemical

Corrosion-resistant centrifugal pump, screw pump, high-temperature heat transfer oil pump.

Explosion-proof certification, media viscosity, temperature/pressure resistance.

Construction/HVAC

Pipeline pump, self-priming pump, variable-frequency centrifugal pump (energy-saving).

Low noise, variable frequency compatibility, head stability.

Agriculture/Municipal

Large centrifugal pump, submersible pump.

Large flow rate, low head, weather resistance (outdoor use).

Marine/Offshore Engineering

Marine centrifugal pump, submersible pump (seawater corrosion-resistant).

Salt spray corrosion resistance, compact design, marine certifications (ABS, DNV).
