Product Description

Ausenist high-performance IP54 smart AU620 Water Pump Drive. The AU620 is a single-phase and three-phase variable frequency drive designed to optimize water pump performance across a wide range of water supply system conditions.

The AU620 drive enables pumps to operate more efficiently, safely, and intelligently, reducing energy consumption and extending pump lifetime.

Constructed with high-quality components and materials, the AU620 incorporates the latest microprocessor technology for reliable and precise control.

AU620 Pump Inverter – Product Features

1. Comprehensive Pump Motor Protection
   Protects your pump motor from phase loss, overload, overvoltage, undervoltage, dry running, and other common issues.

2. Dual Main Pump Operation
   Supports two main pumps running online, alternating at regular intervals for even usage and longer pump life.

3. Automatic Restart
   Automatically restarts the pump when power or water supply is restored, ensuring smooth and continuous operation.

4. Intelligent Anti-Freeze and Anti-Rust Protection
   Prevents freezing and corrosion during idle periods, keeping your system safe in cold or harsh environments.

5. Water Shortage and Burst Pipe Protection
   Detects low water levels or pipe bursts and shuts down the pump automatically to avoid damage.

6. Universal Motor Compatibility
   Works with both permanent magnet synchronous and asynchronous motors, making it suitable for a wide range of pumps.

7. One-Touch Operation
   Simple and intuitive control allows easy operation without specialized training.

8. Energy-Efficient and Reliable
   Optimizes pump performance, reduces energy consumption, and extends the life of your pumps.

9. Compatible with All Major Pump Brands
   Including Grundfos, Wilo, KSB, Ebara, Lowara, Xylem, and Flygt.

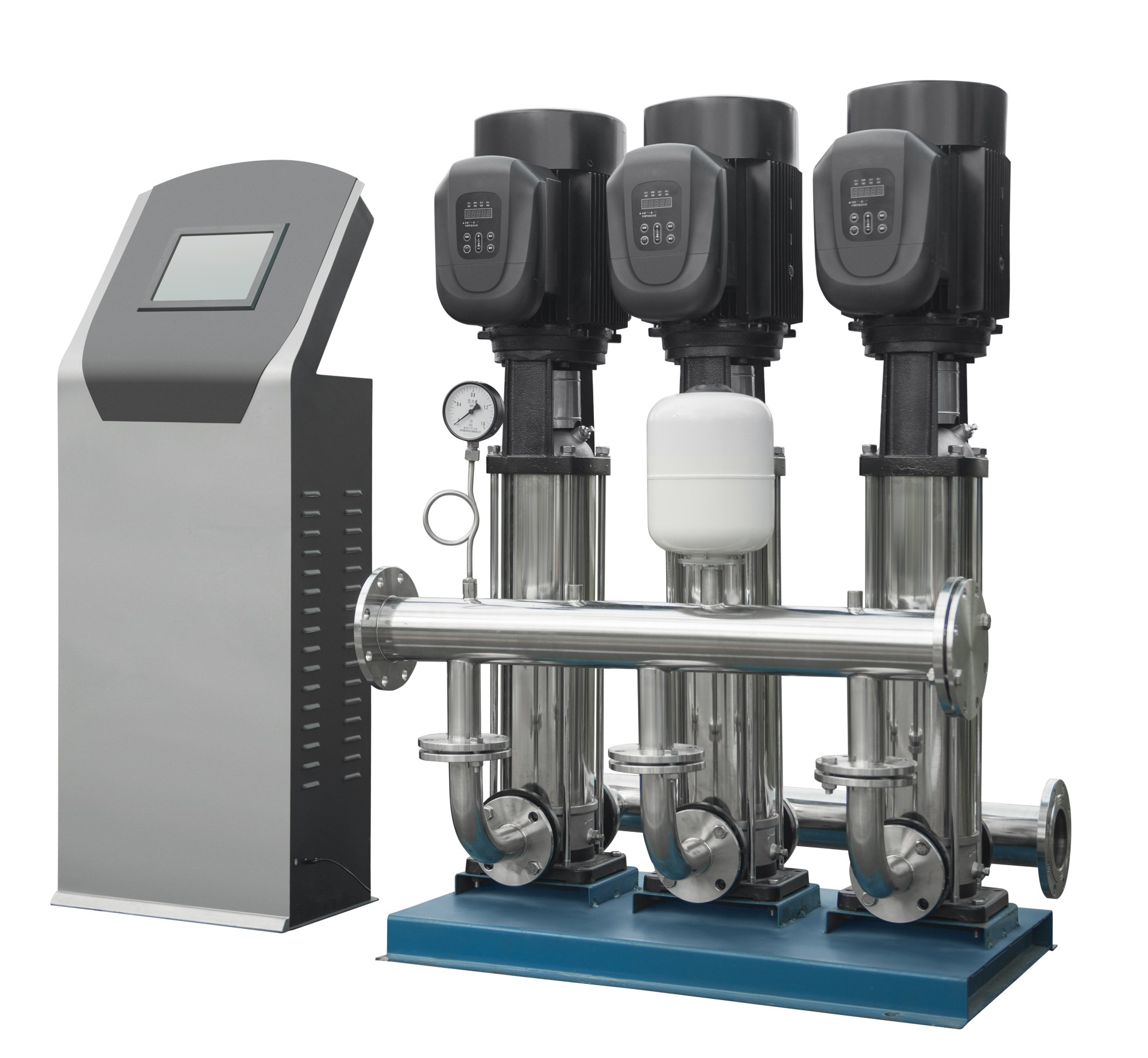

Dual Main Pump & Auxiliary Multi-Pump System

The host unit continuously monitors the pressure in the pipe network and communicates it to the auxiliary pumps. It automatically controls the operation and PID settings of each auxiliary pump based on real-time pressure conditions.

The system monitors the status of all pumps. If the host pump fails, the standby host automatically takes over. If an auxiliary pump fails, it is bypassed, and the next auxiliary pump is started. This ensures seamless automatic switching between main and auxiliary pumps.

Main and auxiliary pumps can operate alternately at scheduled intervals, balancing workload across the system to extend pump life.

This industry-leading setup supports dual main pumps and multiple auxiliary pumps, ensuring reliable operation even if one main pump is offline, while optimizing performance and energy efficiency.

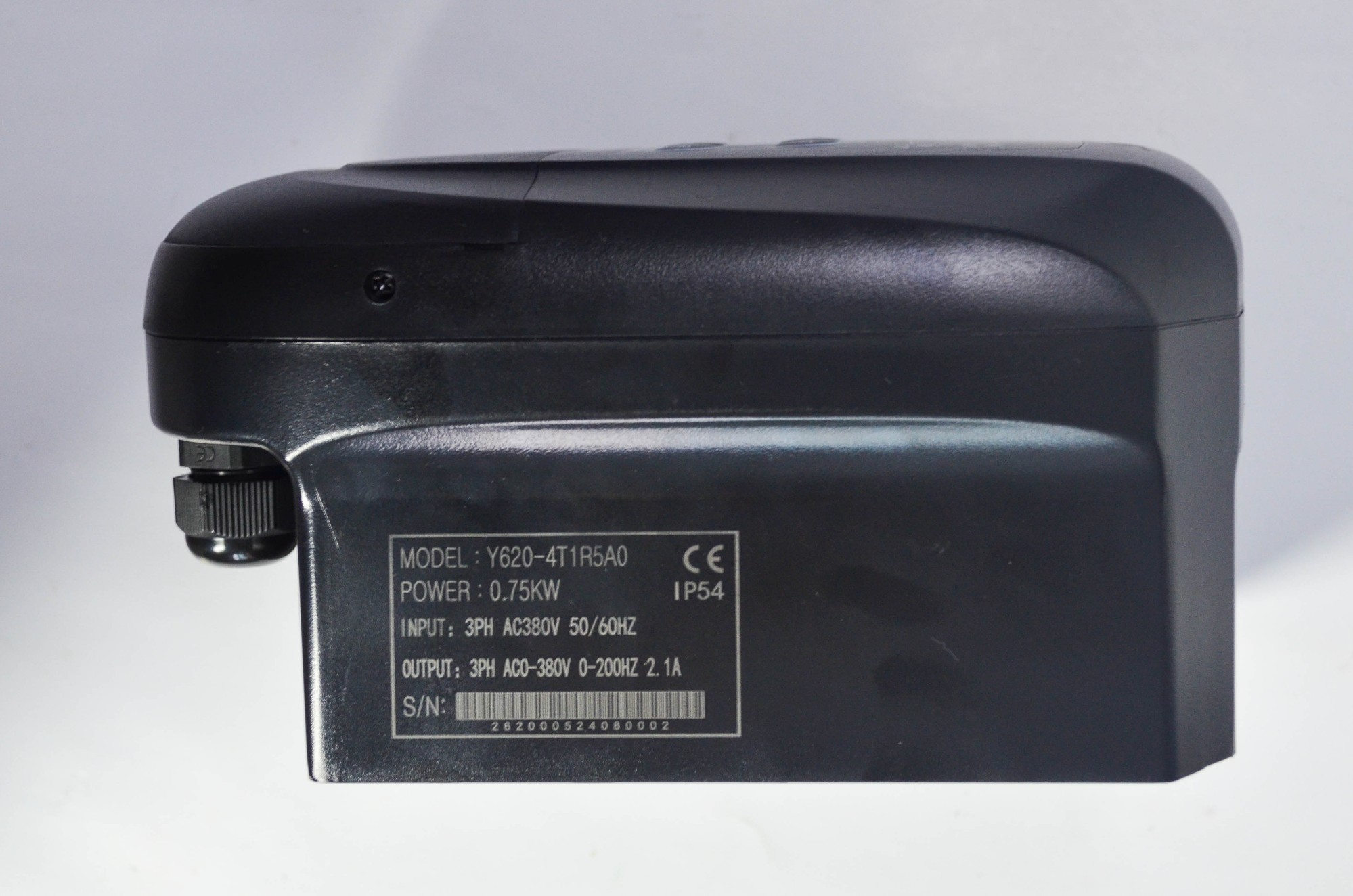

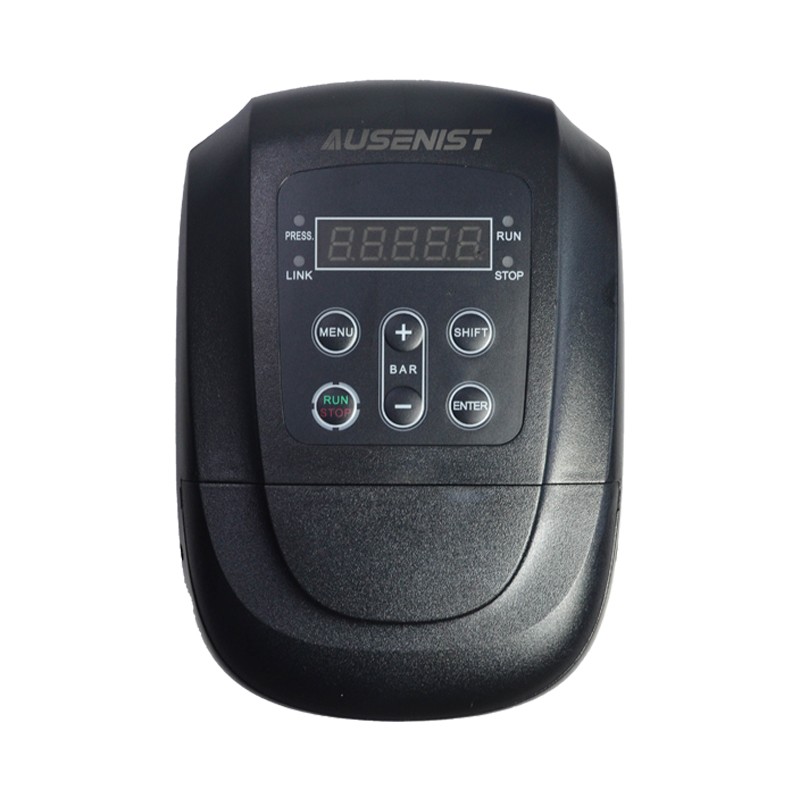

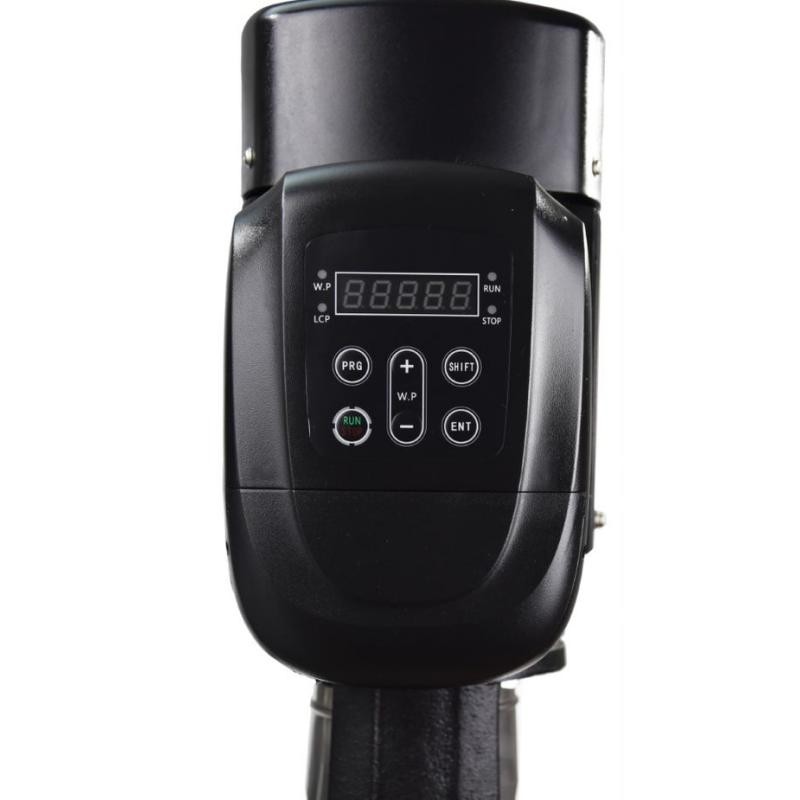

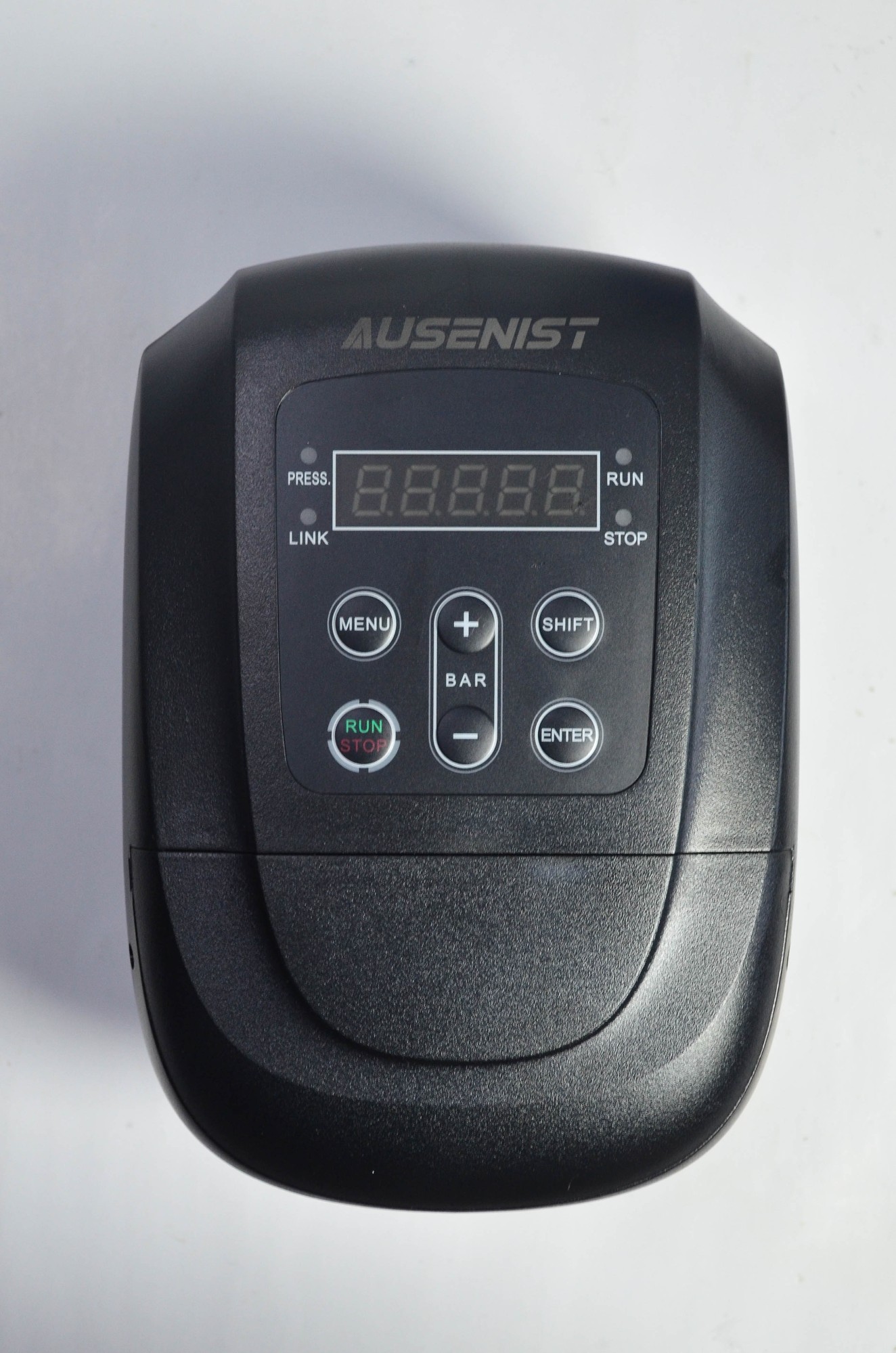

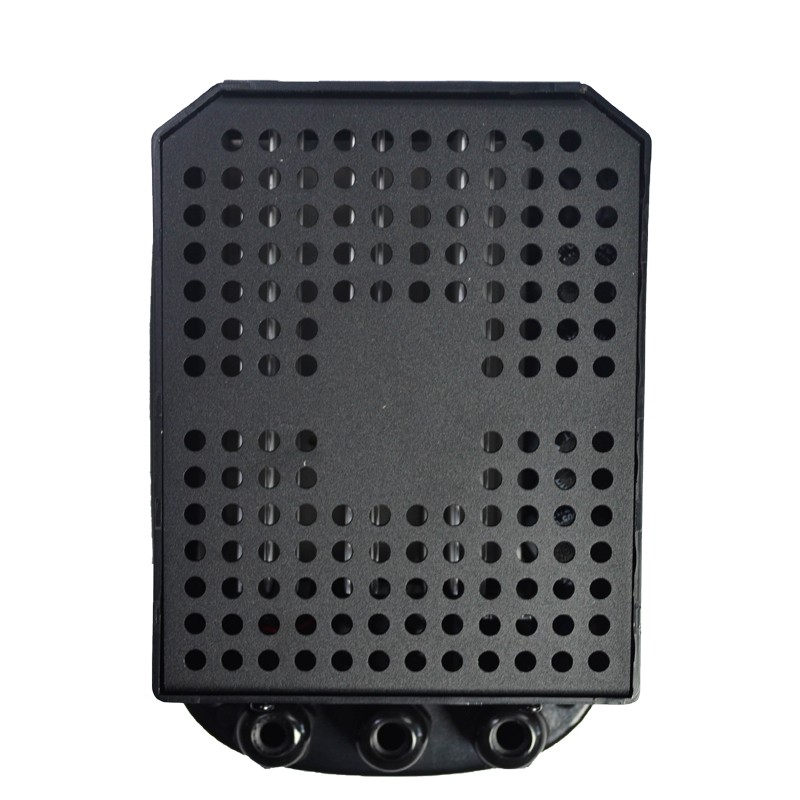

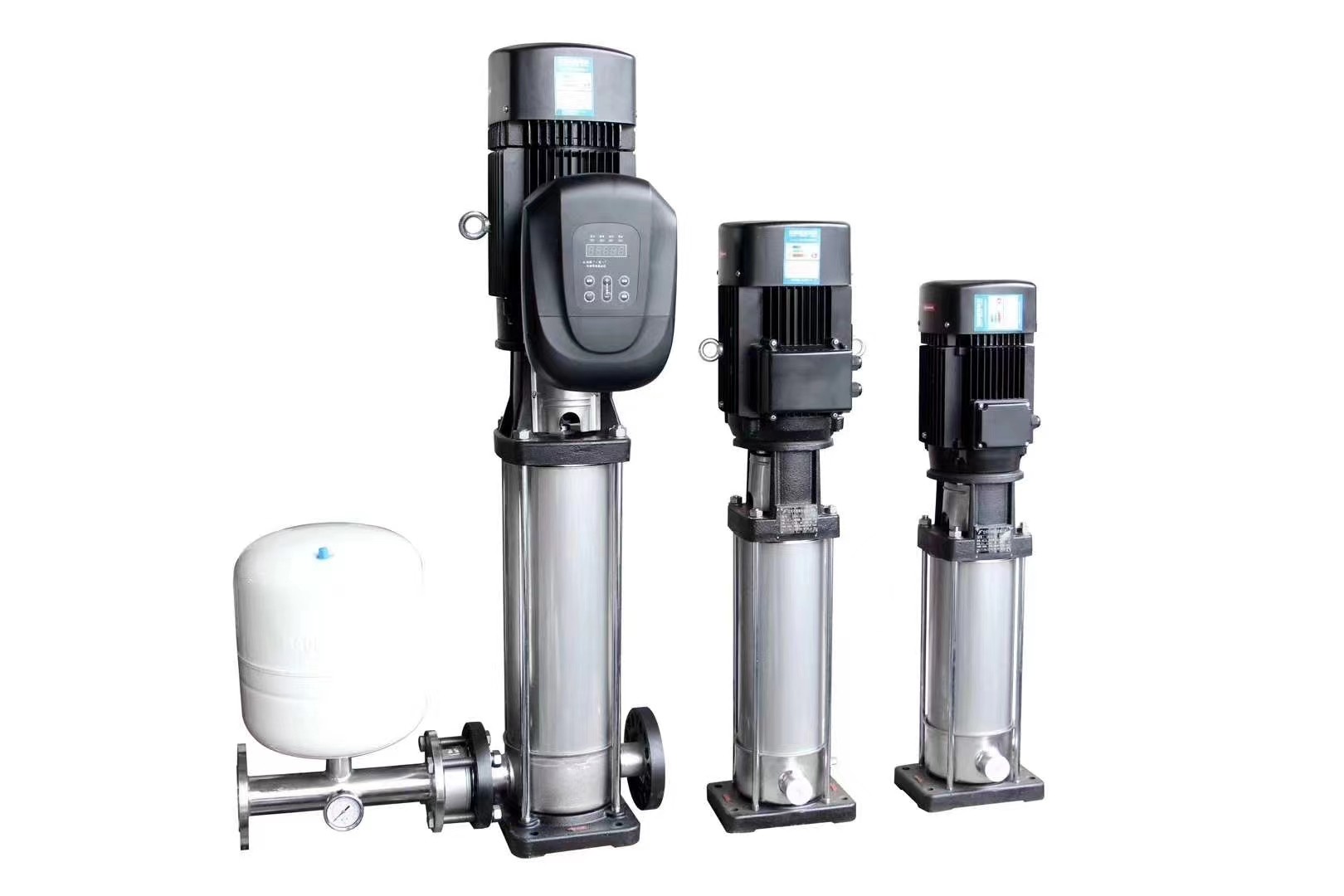

Detailed Photos



Product Parameters



Controlling Characteristic	Control Mode	V/F control
	Starting Torque	0.5Hz±100%
	Speed Adjustable Range	1:100
	Speed-holding precision	±1.0%
	Overload Capability	150% rated current for 60s;180% rated current for 1s
	Acceleration/deceleration Time	0.1-3600s
Input&Output Parameters	Start Frequency	0.01-10.00Hz
	Input Voltage	220VAC±15%,380V±15%
	Input Frequency Range	50/60Hz,fluctuation±5%
	Output Voltage	0-rated input voltage
	Output Frequency	0-200Hz
Peripheral Interface	Programmable Digital Input	2 way of digital terminal input
	Programmable Analog Input	V: 0-5V V (remote pressure gauge):0-10V C(pressure transducer): 4-20mA
	Replay Output	1 way output,pragrammable
Basic Functions	Open Collection Output	1 way output,pragammable
	Command Running Channel	Three kinds of channels: 1.Operational panel 2.Control terminal,3.Serial communication port,choose 1 and 2 for master drive and 3 for auxiliaries
	Built-in PID	Advanced PID arithmetic to realize closed loop control system
	Stall Speed Control	Automatically limit current and voltage at running period to prevent tripping due to frequent overcurrent or overvoltage
	Master and Auxiliaries connection	Extensible RS485 design,one drive in the system can be master and controls the other auxiliary drives (4 at most) to work by communication mode, Master drive sends PID feedback information to the auxiliary drives and monitors status of auxiliaries inreal time.Any failure of the auxiliary drives does not affect the others.
	Water Shortage Protection	If the drive detects the pipe pressure is lower than the water shortage pressure set value,the system stops working automatically.After set period time,it restarts automatically for specified times.If pressure restores to normal,system works normally,otherwise,system stops automatically in case of idle running of pump and prolongs pump lifetime to the maximum extent.
	High Pressure Alarm	When pressure exceeds set pressure,it stops running automatically to avoid damage on pipe network due to high pressure.
	Automatic Energy-saving Running	Automatically lower output voltage under light loading to save energy
	Password Setting	4-bit password can be set with non-zero numbers,Exit password setting interface and the password will be valide in 1 minute.
	Parameters Locking	Define whether the parameter is locked in running or stopped status in case of misoperation.
Use Condition	Installation	Installation should be executed under the conditions of no direct sunlight,dust,corrosive gas,inflammable gas,oil mist,steam and water drop.
	Altitude	Lower than 1000m,service in derated capacity above 1000m.Derate 1% capacity every 100m increase in temperature.
	Environment Temperature	-10ºC-+40ºC,service in derated capacity for 40ºC-50ºC.Derate 4% capacity every 1ºC increase in height.
	Humidity	≤95%RH,no water condensation.
	Vibration	<5.9m / S2(0.6G)
